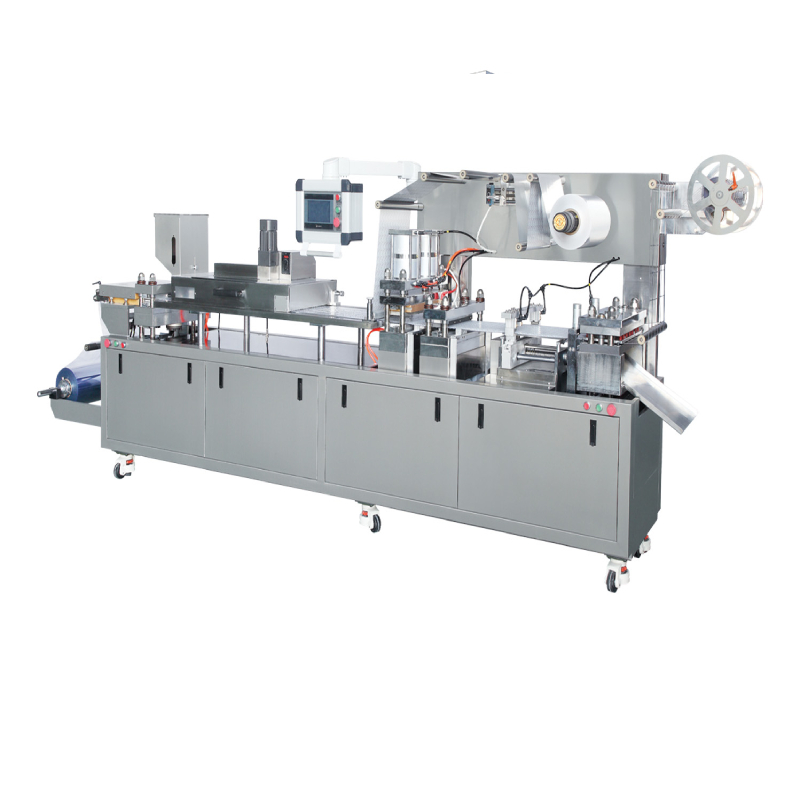

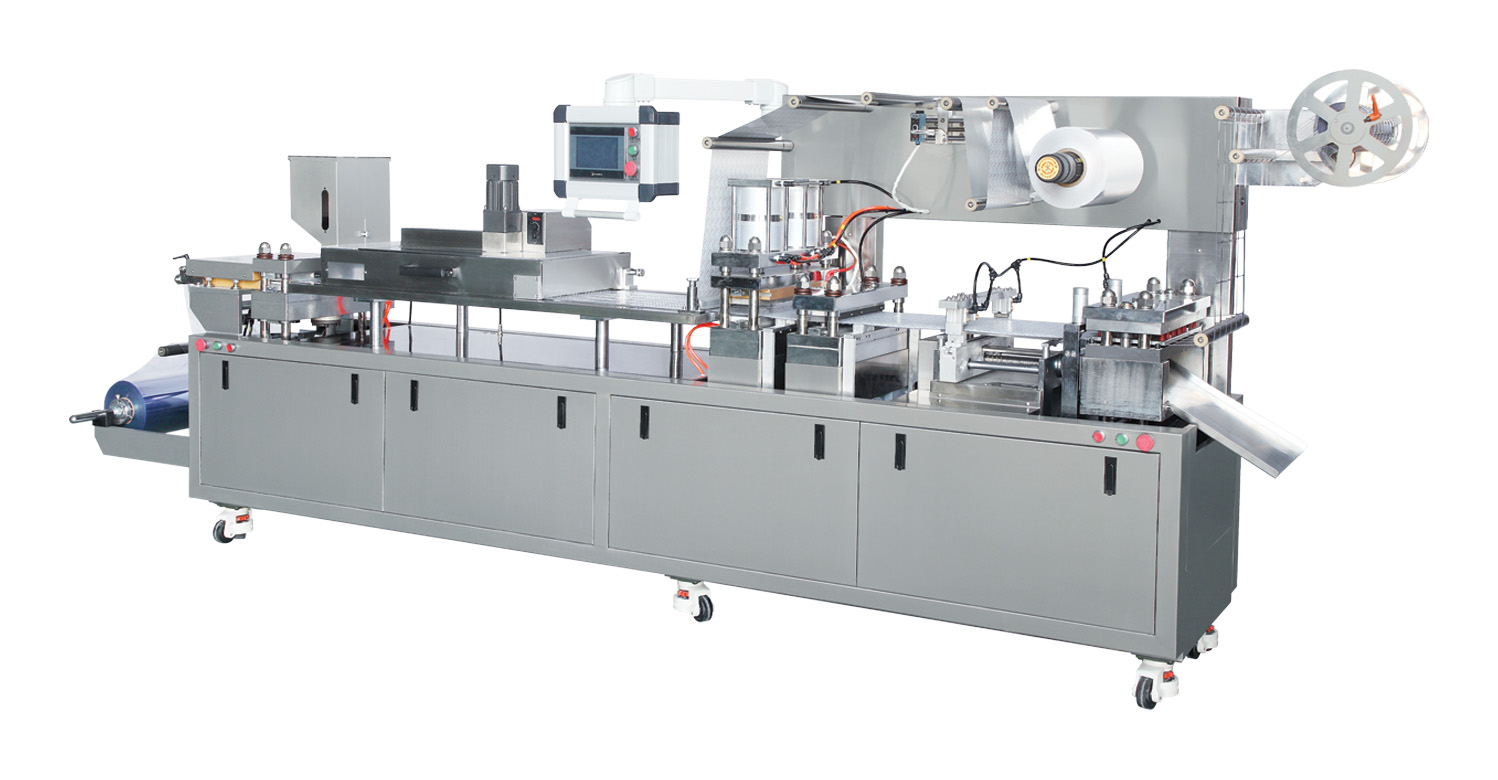

膏体包装机

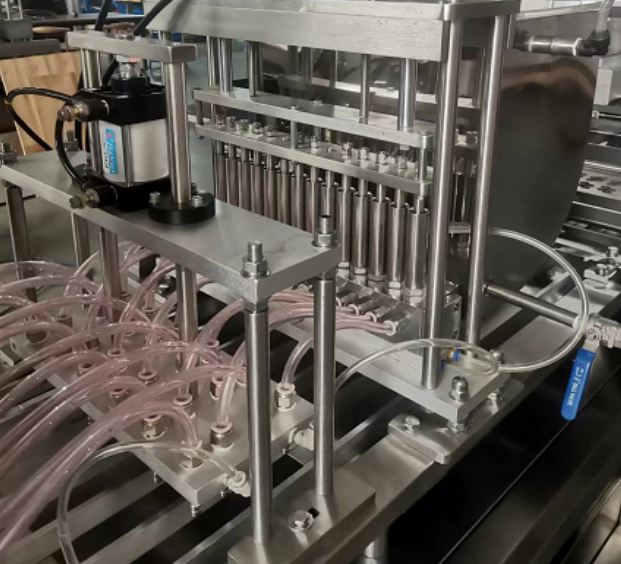

膏体加料器















产品说明：

本机是对卷材PP料，pvc料，PET料等自动成型后罐装产品。可根据产品选择自动给料，也可手工给料，机器自动覆膜热封成型，裁切成品。机器采用PLC编程、变频调速、人机界面操作。功能齐全，操作简便，运行稳定可靠，符合GMP规范要求。由于该机成型面积大，一次冲裁的版块，一定程度上满足了企业规模生产的需要，适合食品行业，药品行业等。

Features:

1、成型、热封、打批号、压痕、冲裁等装置全部采用制有齿条的心轴定位，摇动摇手柄，各种装置均能在心轴上轻松自如的移动，并且可根据标尺和固紧螺母迅速进行校正和定位。

2、机械手牵引，行程可调，能适应各种尺寸版块的包装。在不改变凸轮升程的情况下，采用双重牵引摆杆，加长了牵引行程。

3、对版加热、正压成型、上下网纹、气缸热封、自动送料、自动压痕打批号、自动冲裁版块，操作简单。

4、正压成型加上配置机械冲头，确保了泡罩成型均匀。能适应医用行业，食品行业的广泛包装。

5、主传动部分采用平行轴斜齿轮减速箱，运行平稳。成型、热封、压痕等模具采用肖钉定位，压板固紧，定位准确，换模方便，节省包材。



System Composition ① Sixteen-head 50-bucket fruit and vegetable combination scale: 304 stainless steel body structure; belt feeding structure to ensure uniform and controllable material layer; with built-in hopper to avoid damage to fruits and vegetables. ② Climbing elevator: with 200L silo, easy to store materials; with stainless steel water tank, easy to collect residual materials. ③ Working platform: solid structure, to ensure that the weighing is not affected. ④Automatic mesh bag packaging machine: optional labeling device, spray printing head, can be customized options. ⑤ Finished product conveyor: docking mesh bag packaging machine, finished product lifting output. ⑤ Finished product conveyor: docking with mesh bag packaging machine, finished product lifting and outputting. ⑥ Material handling tray: batch collection of finished products.
